Industrial standard
Analogue Sensors with Volt output (0-10V) sensors are valued for their high accuracy, excellent stability and reliable measurement, making them ideal for demanding industrial monitoring applications.

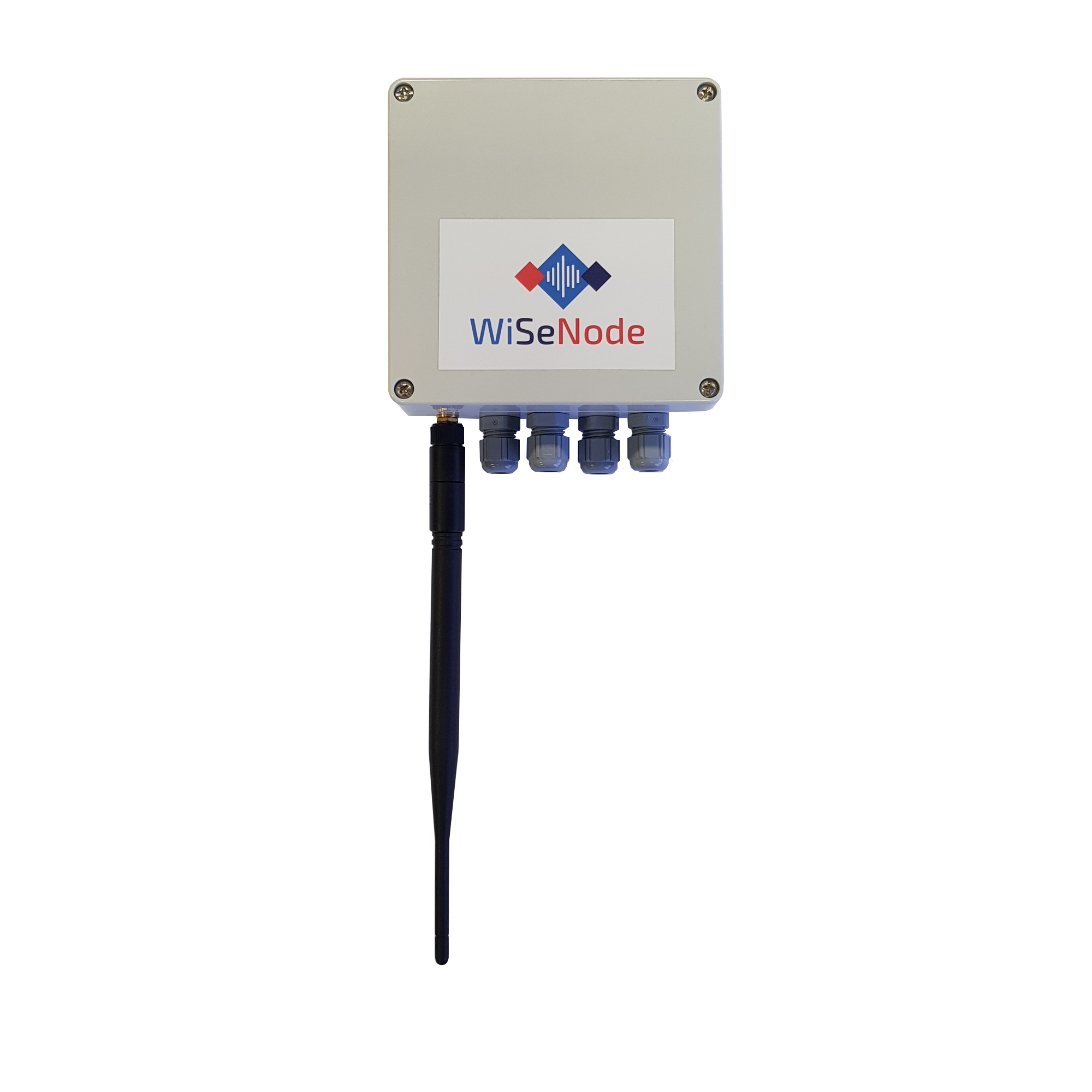

WiSeNode-S Wireless FieldNode (4-20mA Analogue Sensor Input)

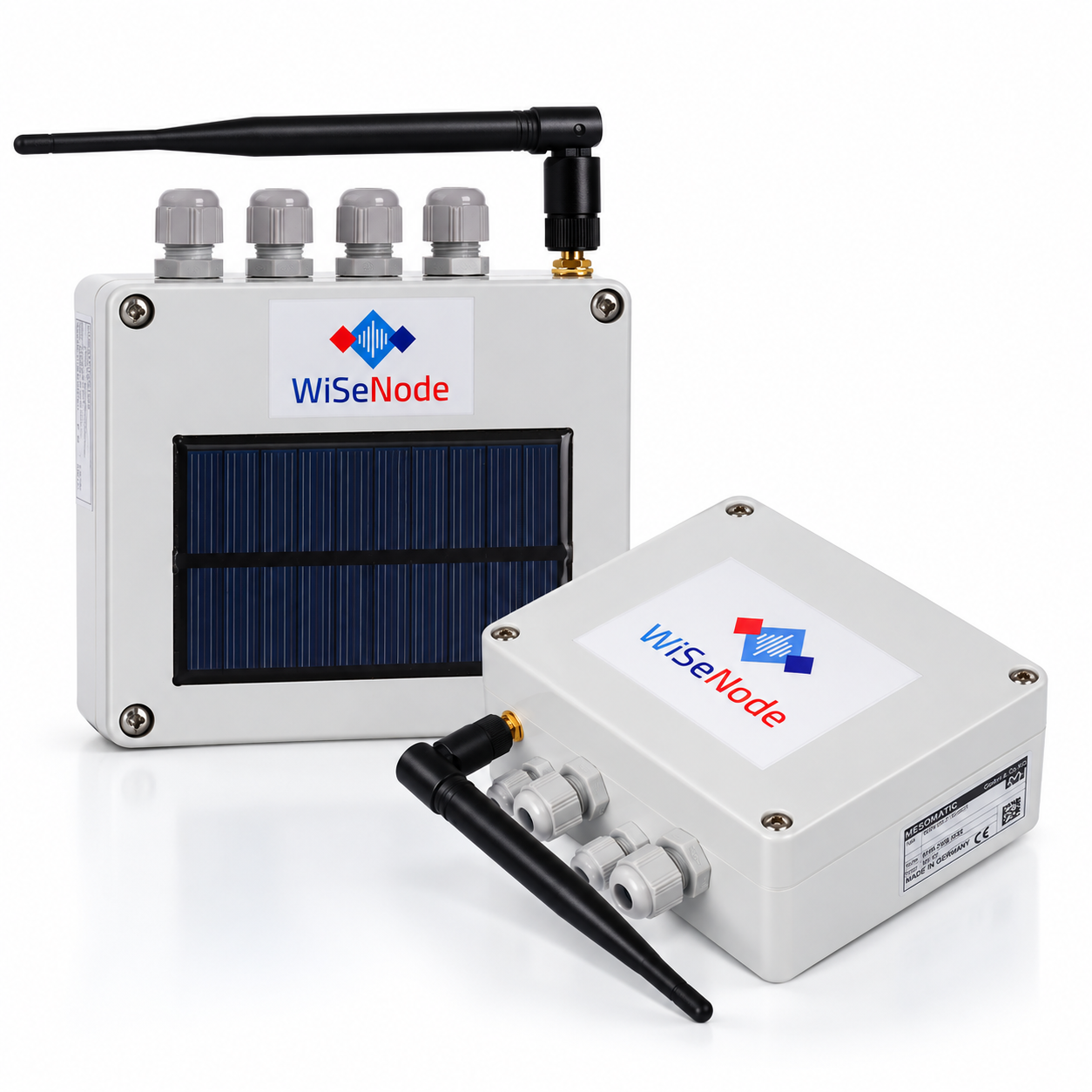

WiSeNode FieldNode-VDC is a 4 channel wireless Industrial IoT measurement module which simultaneously monitors up to 4 signals of Analogue Sensors (mA) Industrial IoT FieldNode are designed for reliable remote sensor monitoring. Li-ion battery are powered, with 9–30 VDC external power supply and battery charging. Optional solar panel connection for autonomous, off-grid operation. Integrated 14 VDC / 100 mA power supply for connected sensors. Long-range LoRaWAN® communication to the WSN-XL Gateway, with up to 8 km range in clear line of sight. Local data storage when wireless communication is temporarily unavailable. Automatic data transmission to the WSN-XL Gateway once communication is restored. Remote sensor zeroing directly from the WSN-XL Gateway, simplifying commissioning and maintenance of remote installations.
SKU: 5013.
Interested? Get in contact with us
Modular integration
Combined with a wide range of industrial sensors, Analogue sensors with VDC technology provides accurate and stable measurement, making it a reliable solution for demanding monitoring and automation applications.
Empowering Businesses
Designed for industries that demand precision and reliability, it integrates advanced IoT technology seamlessly with user-friendly interfaces.
Product overview
The WiSeNode 4–20 mA Wireless Field Module enables accurate and reliable monitoring of industrial analogue sensors. It collects 4–20 mA signals from connected sensors and transmits the data wirelessly to the WiSeNode Gateway and WiSeNode Cloud for remote monitoring and analysis.
Core benefit:
Combines the proven reliability and versatility of 4–20 mA sensors with wireless Industrial IoT connectivity, enabling easy integration of existing sensors into remote monitoring applications without extensive cabling.
Key technical capabilities
Wireless Connectivity
Long-range wireless communication (LoRaWAN)
Energy-efficient data transmission
Reliable performance in distributed and remote environments
Data Handling
Local data acquisition and aggregation
Configurable polling intervals
Data buffering during temporary communication loss
Secure transmission to WiSeNode gateway
Industrial Hardware Design
Designed for industrial and infrastructure environments
Wide operating temperature range
Robust enclosure suitable for outdoor or cabinet installation
Industrial-grade power supply compatibility
Hardware Configuration
WSN-S2 includes:
WiSeNode Microcontroller board
USB-C port
RS485 Port
Embedded memory
Antenna connection plug
Sensor and power connectors
Mechanical & Environmental Specifications
Housing dimensions: 100 × 100 mm
Operating temperature range: −20 °C to +70 °C
Industrial-grade enclosure suitable for cabinet or outdoor installation
System Compatibility
WSN-S DMS with 4 milliamper inputs (0-20mA)
Designed for use with the WiSeNode-XL Gateway
Compatible with WiSeNode Cloud platform
Typical Applications
Remote Asset Monitoring
Connect any sensor of your need, pressure, flow, force, load, temperature, or level sensors in remote installations and transmit data wirelessly to your centralized WiSeNode Cloud platform.
Legacy Equipment Integration
Integrate various measurement equipment into modern IoT infrastructure without replacing installed hardware.
Integration within the WiSeNode Platform
The Wireless Field Module is not a standalone device, but a scalable component within a complete industrial monitoring architecture. It is designed to operate as part of the WiSeNode end-to-end monitoring architecture:
-
Measure
The module acquires precise data from connected devices. Configurable polling intervals and local data handling ensure accurate and reliable field data collection, even in demanding industrial environments.
-
Transmit
Collected data is securely transmitted via long-range wireless communication to the WiSeNode gateway. Energy-efficient transmission and built-in buffering ensure continuity, even during temporary network interruptions.
-
Connect
Data is centralized within the WiSeNode Cloud platform, where it becomes accessible through real-time dashboards and structured data management. Users gain full visibility across distributed installations from a single interface.
-
Act
Once connected, data becomes actionable. Users can configure thresholds, automated alerts, trend analysis, and reporting functions to support operational decisions and proactive maintenance.
Interested? Get in contact with us.
Tell us about your application, integration requirements, or technical specifications. Our team will support you with expert guidance and help determine the right WiSeNode configuration for your environment.
